A Trigger Area Event will trigger the actions as soon as any object or a specific object gets inside a defined area.

---

​

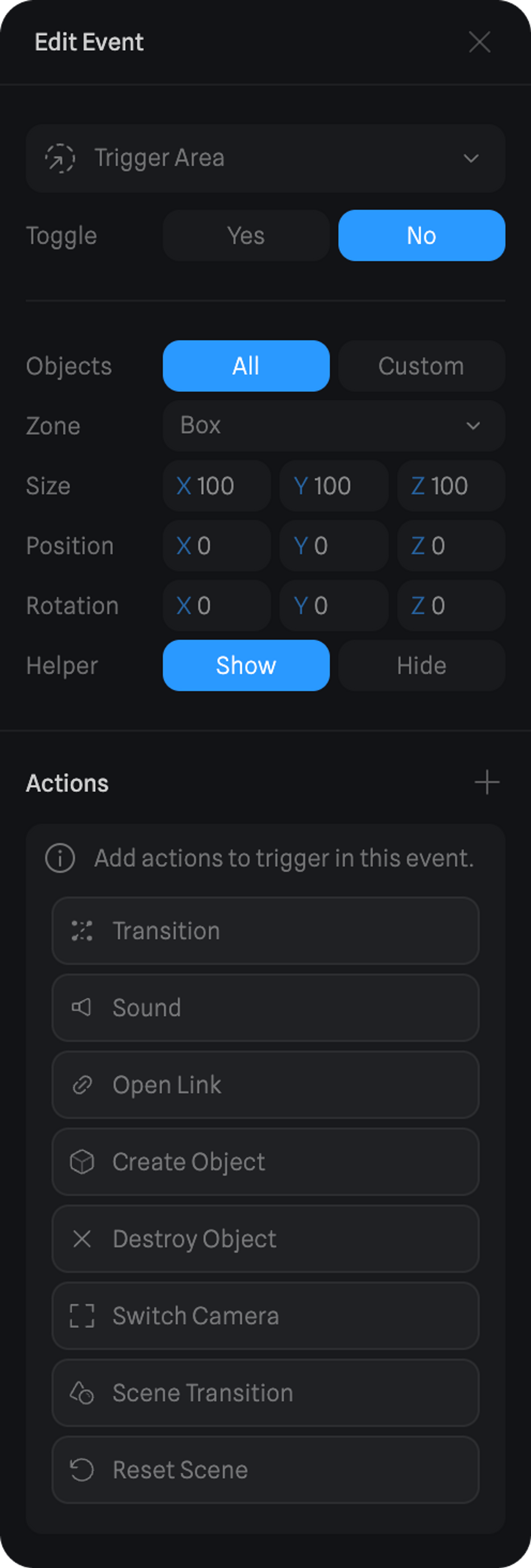

Settings for Trigger Event

Toggle Property

• The Toggle option means that when the event is first triggered, the actions go one way and when it’s triggered again the actions come back, creating a toggle effect.

Objects

• All → every object will be considered for the Trigger Area detection.
• Custom → choose a specific object to be considered for the Trigger Area detection.

Zone

• The type of area. It can be a box or a sphere.

Transform (Size, Position & Rotation)

• Define the transform values for the trigger area.

Helper

• Show or hide the visualization of the trigger area in the editor.

Actions Here are the different Actions you can trigger with the Trigger Area Event:

• Transition Action
• Sound Action
• Open Link Action
• Create Object Action
• Destroy Object Action
• Switch Camera Action
• Scene Transition Action
• Reset Scene Action

---

Try out teleporting via the Trigger Area event + Scene Transition action in the example above by walking into one of the teleports.
